Category: Beam Clamps & Accessories
Part Number: 22r

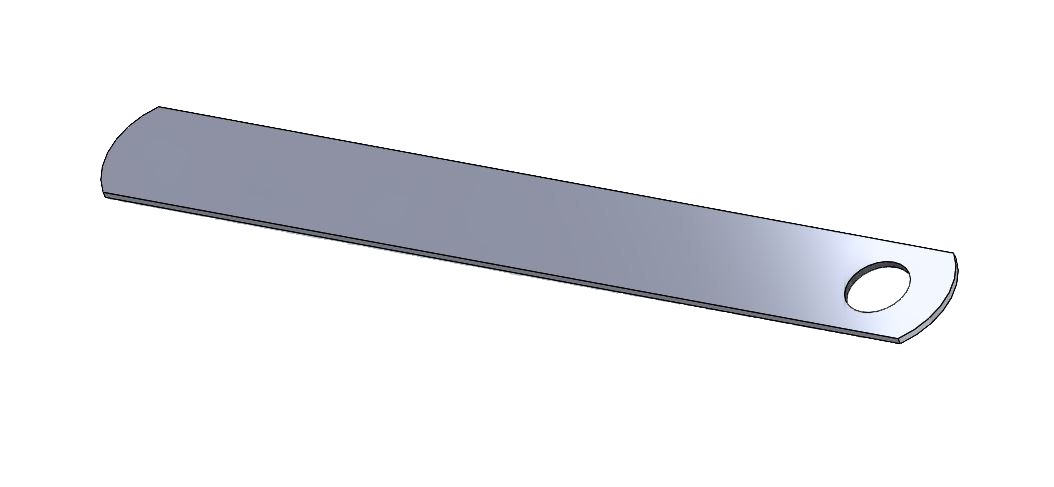

Fig. 22R Retaining Strap

Name: Fig. 22R Retaining Strap
SKU: 22r
Availability: InStock

Empire’s Fig. 22R Retaining Strap is designed for use with Fig. 61 Wide Mouth and Fig. 62 Small Mouth Beam Clamps. Add 2” minimum to flange width to determine length. Custom lengths available.

Competitor Part Number: 89-X, 192RS, B3367, RS, 300C, W117, 637, 359, 69

Specifications and Submittals

Empire Figure 22R – Retaining Strap Submittal

Request CAD Drawing
