Category: Split Ring Hangers
Part Number: 41

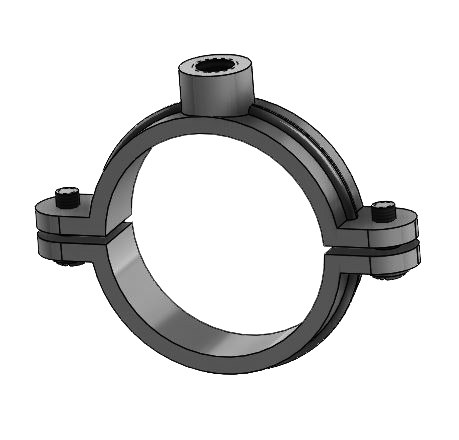

Fig. 41 Split Ring Extension Hanger

Name: Fig. 41 Split Ring Extension Hanger
SKU: 41
Availability: InStock

Empire’s Fig. 41 Split Ring Hanger is designed for the horizontal or vertical suspension of non-insulated stationary copper tubing. Split ring extention hangers with hinged design available in 3/8 – 4” (41H)

Stainless Steel hangers are recommended for applications where protection from a corrosive environment is required.

Competitor Part Number: B3198R, W761, 100, 510R, B3198 (SS/SX), 100, 510R(STAINLESS)

Specifications and Submittals

Empire Figure 41 – Split Ring Extension Hanger Submittal
Empire Figure 41CT – Split Ring Hanger for Copper Tubing Submittal
Empire Figure 41SSI / 41SXI – Split Ring Extension Hanger, T-304 / T-316 Stainless Steel Submittal

Request CAD Drawing
